All measurements in millimeters (mm)

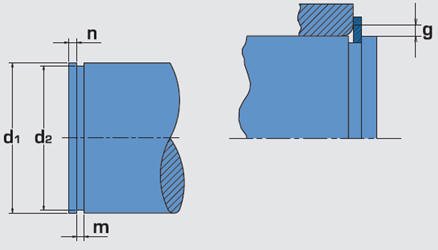

Ring n° d1 s d3 b c d5 d2 m n FN FR g FRg nabl lbs Tool Ring n°
50 0.500 0.035 +0.002 0.461 +0.005 0.080 +0.004 0.041 +0.004 0.042 +0.010 0.468 +0.002 0.039 +0.003 0.048 280 1117 0.032 680 40000 1.000 A0 A01 50
-0.002 -0.010 -0.004 -0.004 -0.002 -0.002 -0.000
56 0.562 0.035 +0.002 0.521 +0.005 0.088 +0.004 0.043 +0.004 0.042 +0.010 0.530 +0.002 0.039 +0.003 0.048 320 1269 0.036 680 35000 1.400 A0 A01 56
-0.002 -0.010 -0.004 -0.004 -0.002 -0.002 -0.000
59 0.594 0.035 +0.002 0.550 +0.005 0.092 +0.004 0.046 +0.004 0.042 +0.010 0.559 +0.003 0.039 +0.003 0.052 370 1320 0.037 680 32000 1.600 A0 A01 59
-0.002 -0.010 -0.004 -0.004 -0.002 -0.003 -0.000
62 0.625 0.035 +0.002 0.579 +0.005 0.096 +0.004 0.048 +0.004 0.042 +0.010 0.588 +0.003 0.039 +0.003 0.055 400 1421 0.039 680 30000 1.600 A0 A01 62
-0.002 -0.010 -0.004 -0.004 -0.002 -0.003 -0.000
68 0.688 0.042 +0.002 0.635 +0.005 0.104 +0.005 0.052 +0.005 0.042 +0.010 0.646 +0.003 0.046 +0.003 0.063 500 2335 0.042 1000 28000 2.500 A0 A01 68
-0.002 -0.010 -0.005 -0.005 -0.002 -0.003 -0.000
75 0.750 0.042 +0.002 0.693 +0.005 0.112 +0.005 0.056 +0.005 0.042 +0.010 0.704 +0.003 0.046 +0.003 0.069 600 2538 0.045 1000 26500 2.800 A0 A01 75
-0.002 -0.010 -0.005 -0.005 -0.002 -0.003 -0.000
78 0.781 0.042 +0.002 0.722 +0.005 0.116 +0.005 0.057 +0.005 0.042 +0.010 0.733 +0.003 0.046 +0.003 0.072 650 2639 0.046 1000 25500 3.100 A0 A01 78
-0.002 -0.010 -0.005 -0.005 -0.002 -0.003 -0.000
81 0.812 0.042 +0.002 0.751 +0.005 0.120 +0.005 0.060 +0.005 0.050 +0.010 0.762 +0.003 0.046 +0.003 0.075 700 2690 0.048 1000 24500 3.300 A0 A01 81
-0.002 -0.010 -0.005 -0.005 -0.002 -0.003 -0.000
